Getting started on 5G Edge with Boto3

Launch your first Amazon EC2 instance in a Wavelength Zone using Boto3 and Python

Image for post
Image for post

About this post

Requirements and getting started

Step 1: Provision main function.

if __name__ == "__main__":
client = boto3.client('ec2',aws_access_key_id="your_key_id",
aws_secret_access_key="your_secret_key",region_name='us-east-1')
ec2 = boto3.resource('ec2',aws_access_key_id="your-key",
aws_secret_access_key="your-secret",region_name='us-east-1')
launchWavelengthZone()

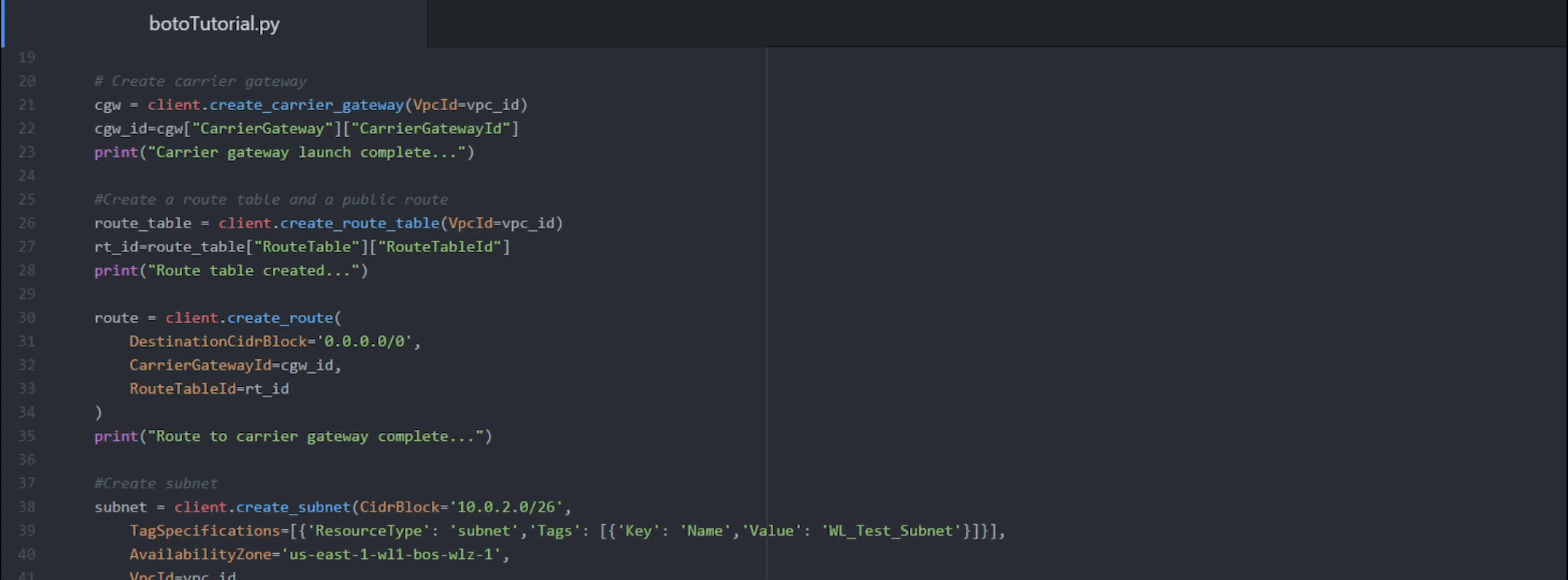

Step 2: Create VPC and Carrier Gateway

import boto3
import time
def launchWavelengthInfra():
print("Launching Wavelength Zone..")
# create VPC
vpc = client.create_vpc(CidrBlock='10.0.2.0/24',
TagSpecifications=[
{'ResourceType': 'vpc','Tags': [{'Key': 'Name','Value': 'WL_Test_VPC'}]},
]
)
time.sleep(1) #Provide time for VPC to launch
print("VPC launch complete...")
vpc_id=vpc["Vpc"]["VpcId"]
# Create carrier gateway
cgw = client.create_carrier_gateway(VpcId=vpc_id)
cgw_id=cgw["CarrierGateway"]["CarrierGatewayId"]
print("Carrier gateway launch complete...")

Step 3: Create route table and public route to carrier gateway.

#Create a route table and a public route
route_table = client.create_route_table(VpcId=vpc_id)
rt_id=route_table["RouteTable"]["RouteTableId"]
print("Route table created...")
route = client.create_route(
DestinationCidrBlock='0.0.0.0/0',
CarrierGatewayId=cgw_id,
RouteTableId=rt_id
)
print("Route to carrier gateway complete...")

Step 4: Create subnet and associate route table.

#Create subnet
subnet = client.create_subnet(CidrBlock='10.0.2.0/26',
TagSpecifications=[{'ResourceType': 'subnet','Tags': [{'Key': 'Name','Value': 'WL_Test_Subnet'}]}],
AvailabilityZone='us-east-1-wl1-bos-wlz-1',
VpcId=vpc_id
)
subnet_id=subnet["Subnet"]["SubnetId"]
print("Subnet (Wavelength Zone) created..")
##Associate route table to subnet
route_table = ec2.RouteTable(rt_id)
route_table_association = route_table.associate_with_subnet(SubnetId=subnet_id)
print("Association of route table to subnet complete..")

Step 5: Define security groups and allocate Carrier IP.

# Create security group
securityGroup = ec2.create_security_group(
GroupName='Enabled_ICMP', Description='Security group with ICMP access', VpcId=vpc_id)
securityGroup.authorize_ingress(
CidrIp='0.0.0.0/0',
IpProtocol='icmp',
FromPort=-1,
ToPort=-1
)
print(securityGroup.id)
print("Security group initialization complete...")
##Allocate IP address
ipAddress = client.allocate_address(
Domain='vpc',
NetworkBorderGroup='us-east-1-wl1-bos-wlz-1',
)
print("IP address allocated in NBG...")
print(ipAddress)
##Create ENI
eni=client.create_network_interface(SubnetId=subnet_id)
eni_id=eni["NetworkInterface"]["NetworkInterfaceId"]
print("ENI created..")
##Associate IP to ENI
assoc = client.associate_address(
AllocationId=ipAddress["AllocationId"],
NetworkInterfaceId=eni_id,
)
print("Association of Carrier IP to ENI complete..")

Step 6: Launch EC2 instance in Wavelength Zone.

#Create EC2 Instance in Wavelength Zone
instance = ec2.create_instances(
ImageId='ami-0947d2ba12ee1ff75',
InstanceType='t3.medium',
MaxCount=1,
MinCount=1,
NetworkInterfaces=[{'DeviceIndex': 0,"NetworkInterfaceId":eni_id}]
)
print(instance)
print(type(instance))
print("EC2 instance deployed...")

Acknowledgments
